Linux based Controller with SALZ Software PURE

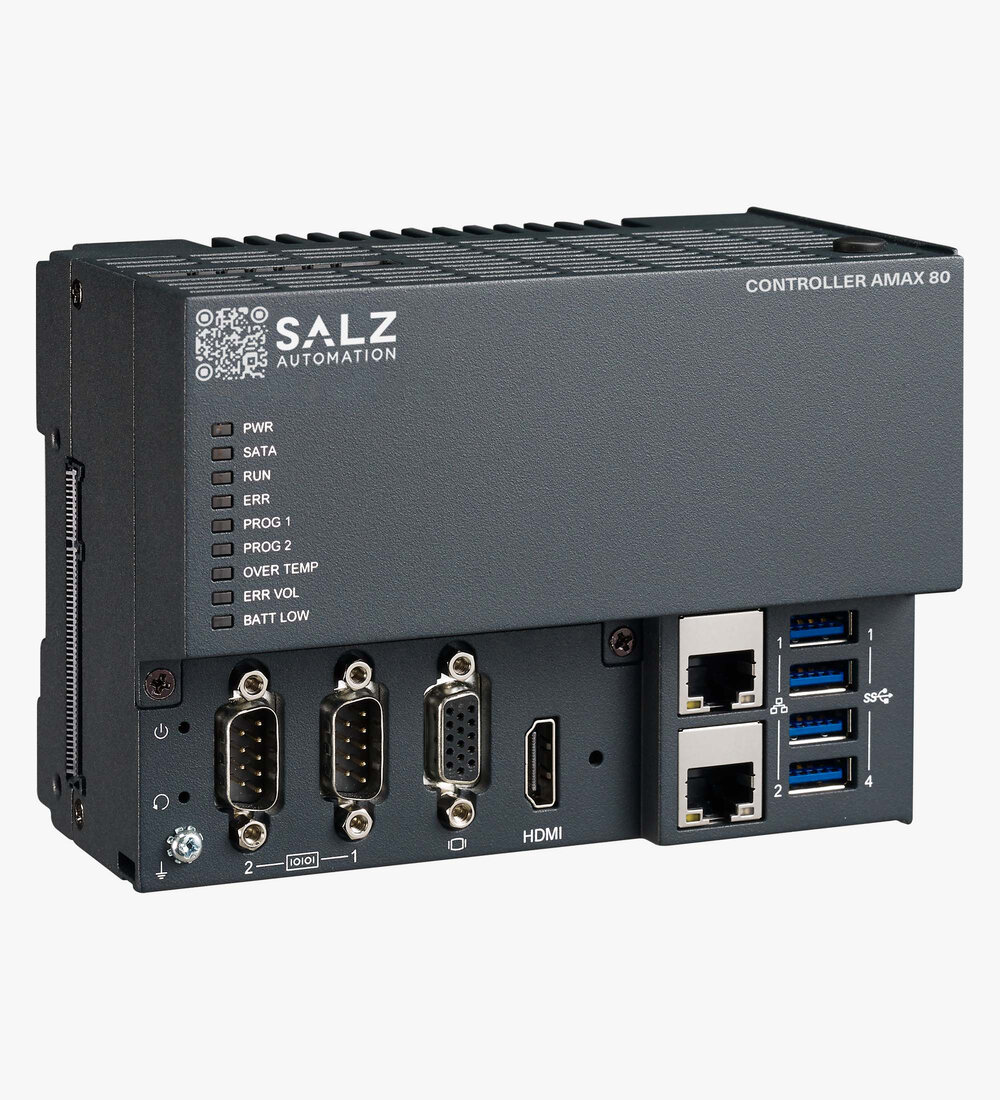

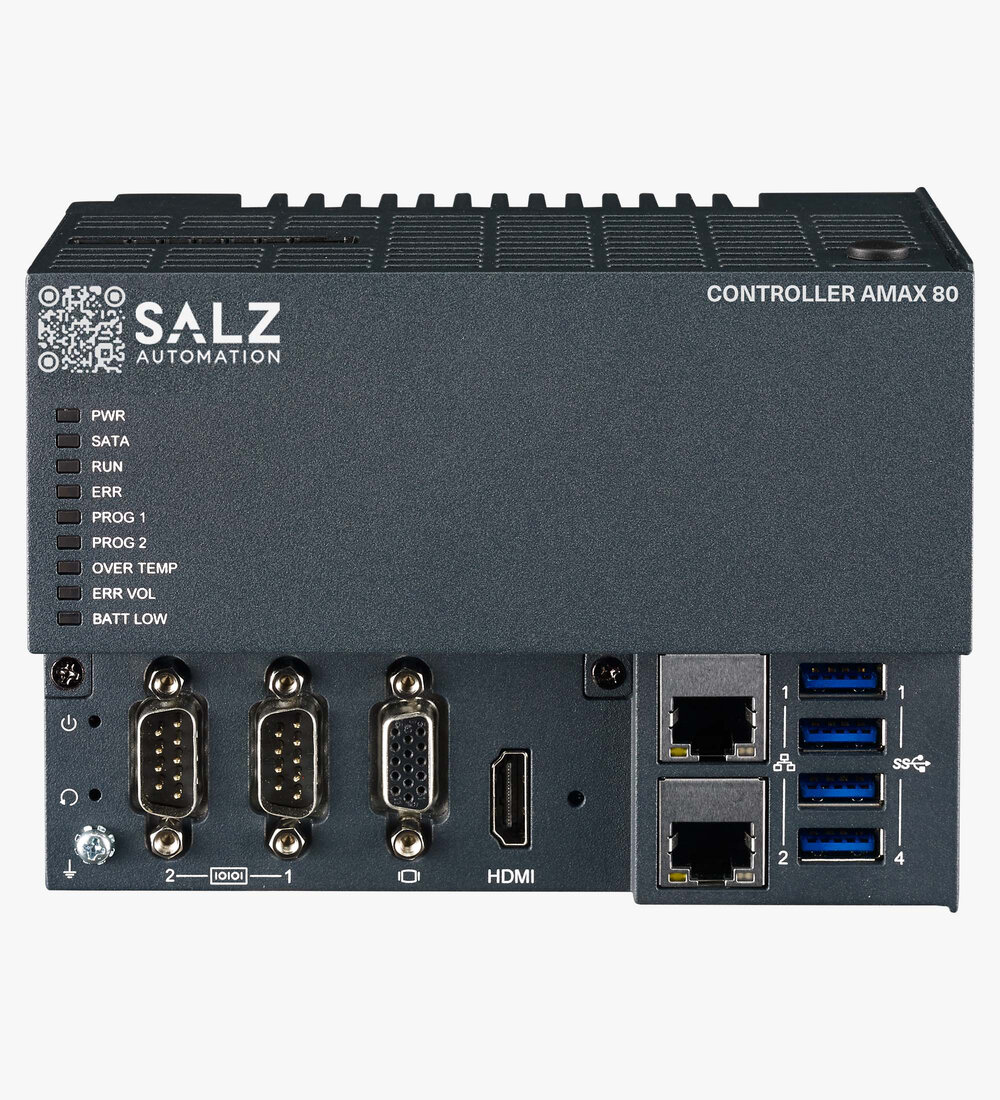

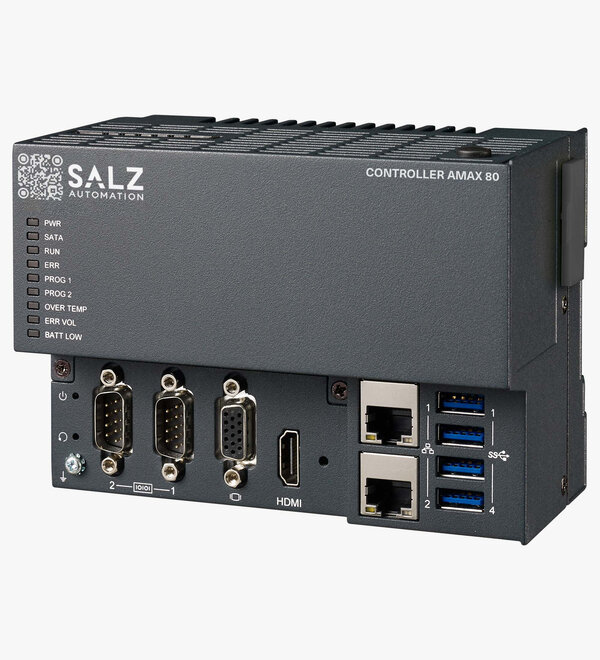

CONTROLLER AMAX 80-C PURE

Intel® Celeron® Control IPC, Linux based, Pre-Installed SALZ Software PURE, with EtherCAT I/O modules and PCIe modules

Function

Intel® Celeron processor, SALZ Software PURE, 2GHz Skylake Dual Core, 2MB L2 with 4GB DDR4 memory, 128Gb SSD, 2xGbE, 4xUSB 3.0, 2xRS-232 /422/485, 1xVGA, 1xHDMI, Wireless mPCIe module

Features

SALZ Software PURE
Multi-Runtime support
Management of data exchange between installed applications
Monitoring of Health State possible at any time
Integrated open marketplace

HAVE A QUESTION?

Datasheet CONTROLLER AMAX-C Download

SKU/Order No.: SA-AMAX-5580-C3000A

Additional Information

The AMAX-80-C controller by SALZ Automation is a compact yet powerful Linux real-time controller, enhanced by FLECS technology. It features an Intel® Celeron 3955U 2.0 GHz Skylake Dual Core processor, offering robust computing capabilities. The controller includes a DATA EXCHANGE LAYER (D.E.L.), essential for managing data exchange between installed applications. It supports EtherCAT I/O modules from the AMAX-5000 series for seamless integration with various I/O devices and has an integrated PCIe interface on the left side, allowing easy addition of communication modules such as NVRAM or WiFi. The AMAX-80-C, with its D.E.L., is an ideal open control platform for tackling future challenges. Pre-installed with SALZ Software PURE/FLECS, the AMAX-80-C provides a user-friendly graphical user interface (GUI) and operates independently of internet connectivity. Applications within PURE are deployed as Docker containers, ensuring flexibility and efficient resource utilization. Software and applications for the AMAX-80-C can be downloaded from the SALZ Automation website in the "Resources" section, available post-registration. Pure can be upgraded to FLECS which has an inbuilt FLECS App Store for downloading applications on the controller. The AMAX-80 and PURE deliver a robust solution for data acquisition, transmission, control, and analysis in automation projects.

Applications/Software for the controller are available to download on the website. To access that:

Register/Login on the SALZ Automation website.
After the account is verified, applications/software are available in the 'Resources' section.

Interface

Input Data

Mechanical Data

Dimensions

Ambient Condition

Standards and Regulations

System Hardware

Commercial Data

Certification

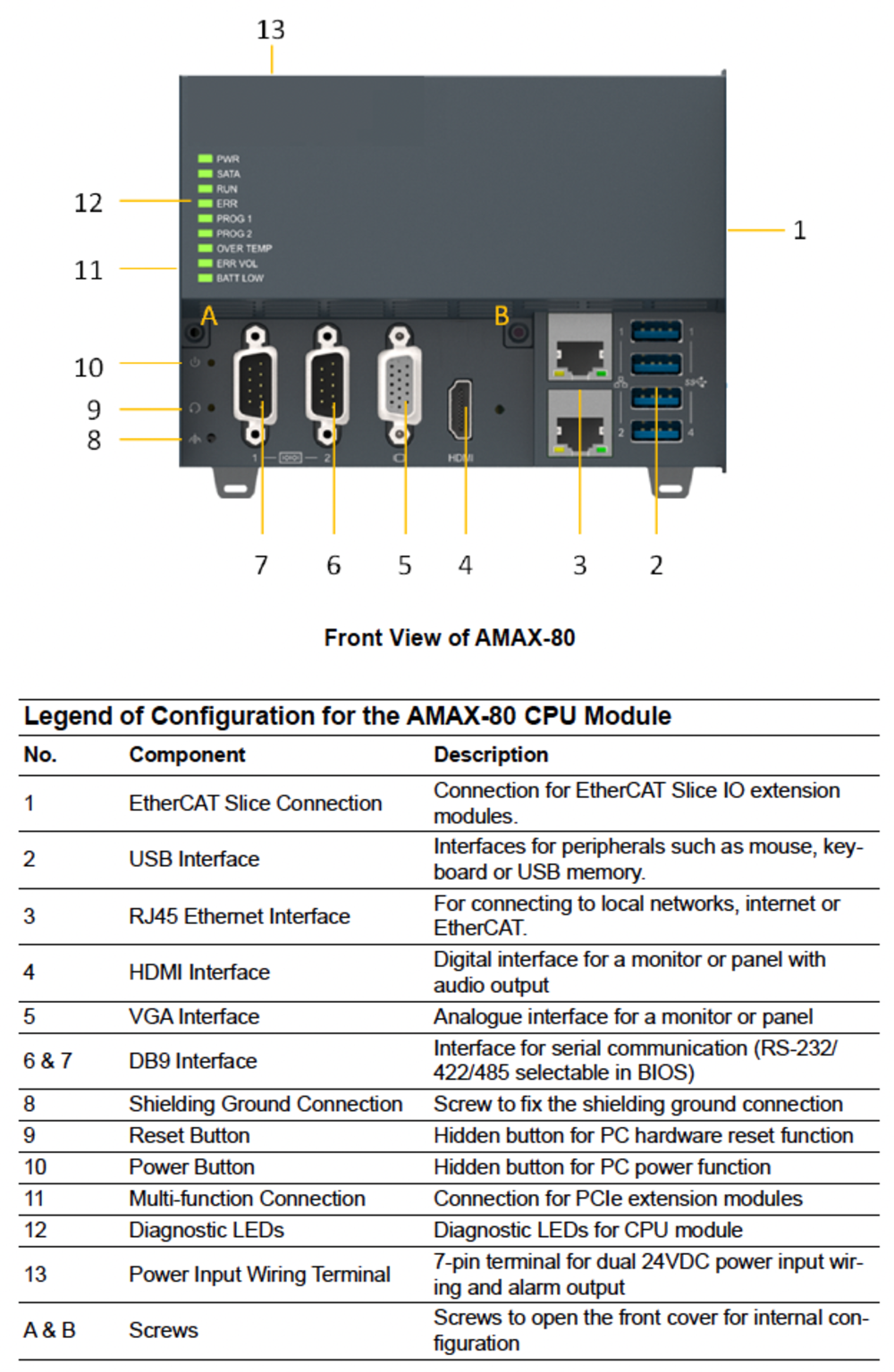

Interface back to top

LED Panel	LEDs for Power, Storage, Run(Program) and Abnormal status, LAN (LINK, ACT)
Serial Ports	2 x RS-232/422/485 (DB9), 50 ~ 115.2kbps
LAN Ports	2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000BASE-T Fast Ethernet
Display	1 x VGA, support up to 1920 x 1200 @60Hz 1 x HDMI, support up to 4096 x 2160 @24Hz
Grounding Protection	Chassis grounding
USB Ports	4 x USB ports (USB 3.0 compliant ), 1 x internal USB

Input Data back to top

Input Voltage Range DC	24 VDC ± 20%
Power Consumption (max.)	15 W (Typical), 42 W (Max)

Mechanical Data back to top

Housing	Aluminum alloy
Mounting DIN Rail according EN 60715	DIN-rail
Weight (typ.)	Approx. 1.3kg
Cooling Method	Passive cooling and front accessible

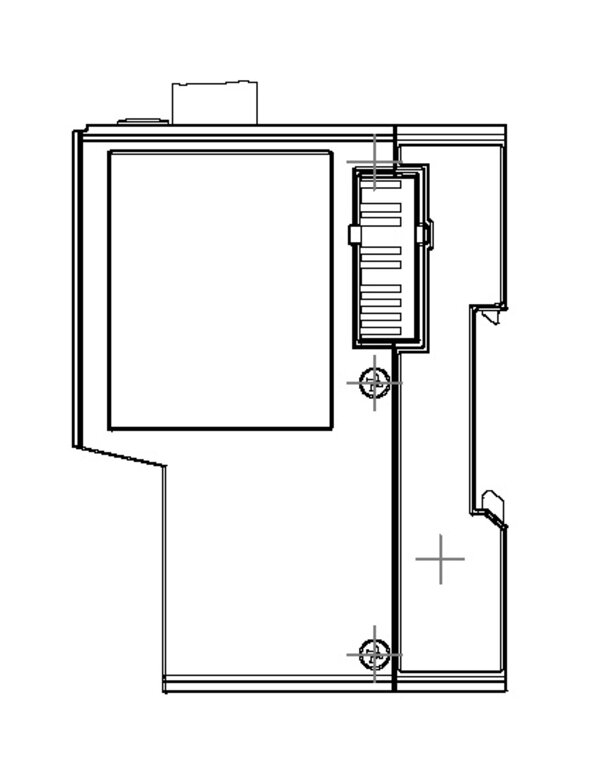

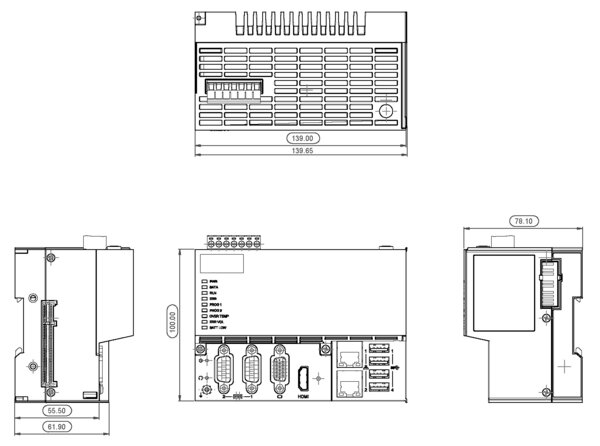

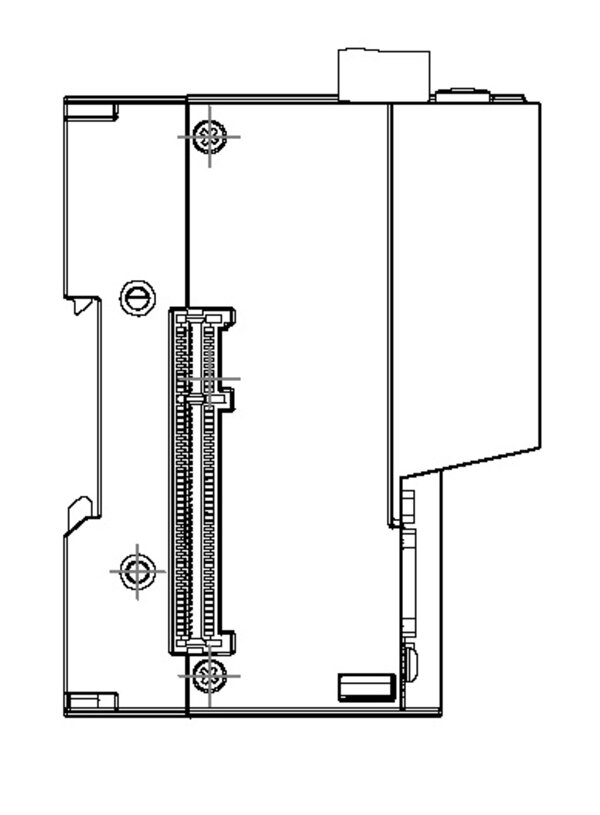

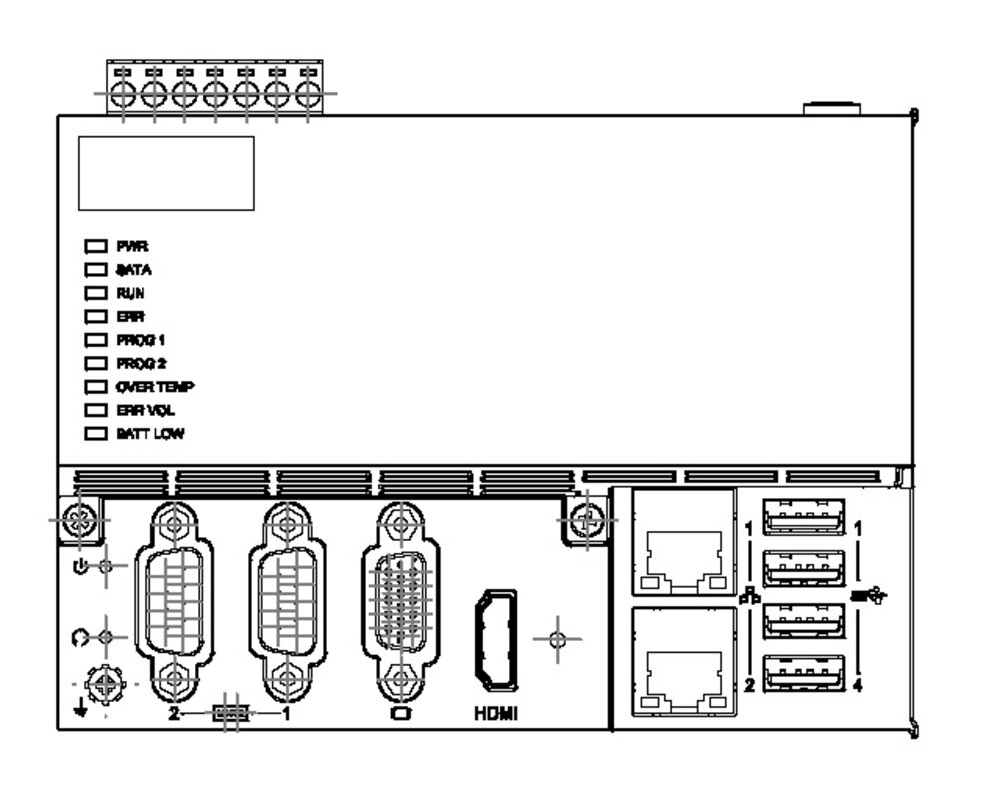

Dimensions back to top

Depth (mm)	80 mm
Height (mm)	100 mm
Width (mm)	139 mm

Ambient Condition back to top

Ambient Temperature (operating)	-20 ... 60°C (-4 ... 140°F) @ 5 ... 85% RH with 0.7m/s airflow
Ambient Temperature (operating with expansion)	-20 ... 55°C (-4 ... 131°F) @ 5 ... 85% RH with 0.7m/s airflow (with EtherCAT expansions and mPCIe)
Ambient Temperature (storage/transport)	-40 ... 85°C (-40 ... 185°F)
Operating Humidity (non-condensing)	95% RH @ 40°C

Standards and Regulations back to top

Shock Test	Operating, IEC 60068-2-27, 10G, half sine, 11 ms
Vibration	Operating, IEC 60068-2-64, 1 Grms, random, 5 ~ 500 Hz, 1hr/axis (M.2)

System Hardware back to top

BIOS	AMI EFI 128Mbit Flash BIOS
Watchdog Timer	Programmable 255 levels timer interval, from 1 to 255 sec
Processor	Intel® Celeron 3955U 2.0 GHz Skylake Dual Core, 2MB L2
Memory	DDR4 2666MHz, 4GB (two socket support up to 16G)
Ethernet	Intel® i210-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802.3az
Storage	1 x 128 GB M.2 M Key 2280 SSD

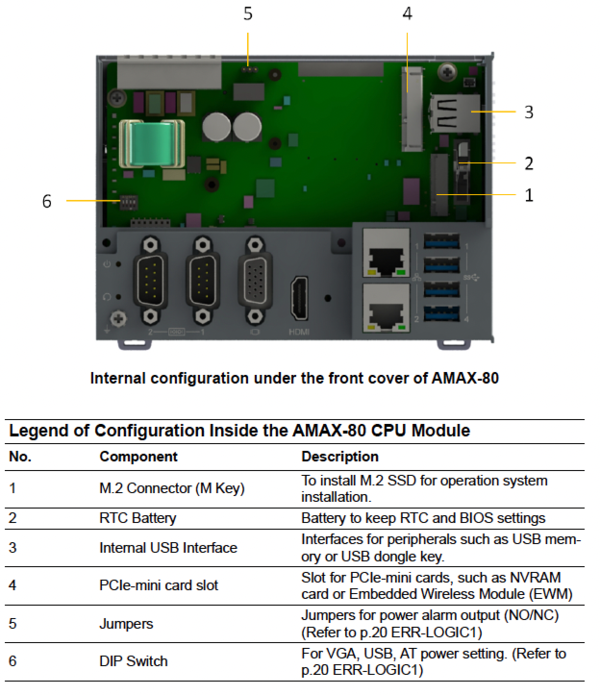

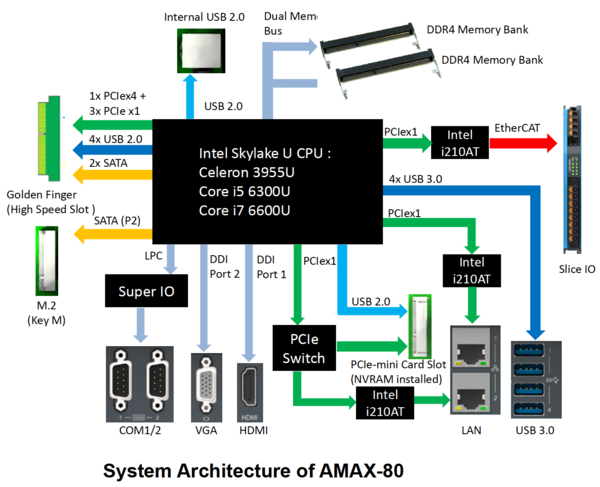

Expansion	right side expansion: 1 x EtherCAT Slice I/O; left side expansion: 1 x Full-size mPCIe slot (PCIe / USB 2.0 / SATA signal)

Commercial Data back to top

Customs Tariff Number

85371091

Certification back to top

Certification

FCC, UL

SALZ Software PURE

SALZ Software PURE, which comes pre-installed on SALZ Controllers, provides an intuitive GUI and operates independently of internet connectivity. The D.E.L. within PURE efficiently manages data exchange through Docker containerized applications, enhancing flexibility and resource utilization.

Multi-Runtime support

The system supports several runtime systems simultaneously, for example two Codesys programs together with the SALut system. This makes it possible to control several machines with one control hardware or to build your own re-use concept.

Management of data exchange between installed applications

The D.E.L. technology uses mechanisms from the field of Shared Memory and OPC-UA. The two resulting data pools are kept constantly synchronized. This ensures data exchange between real-time and non-real-time applications. To ensure that only the data that should be exchanged is exchanged, the D.E.L. also contains a user and rights management that is operated by the user.

Monitoring of Health State possible at any time

Integrated open marketplace

Integrated marketplace to let user install the applications. This marketplace has easy to install and update application with a web interface. There are various specifically designed software for the hardware systems. These softwares can let anyone manage SCADA, PLC or HMI display.
