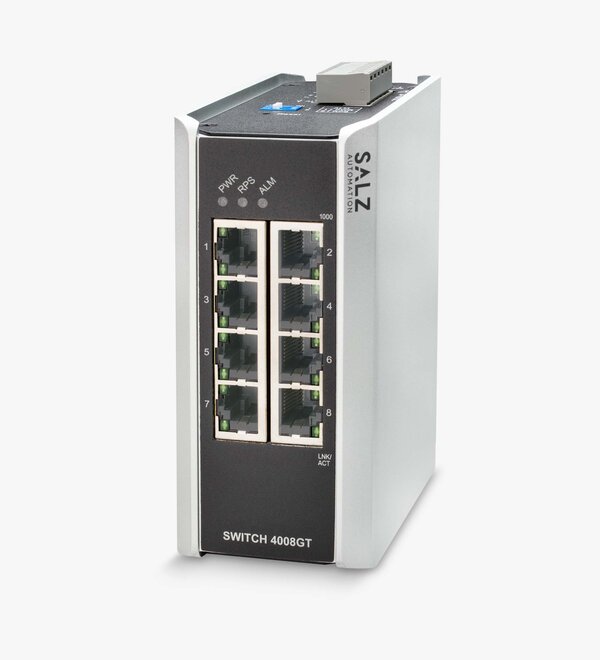

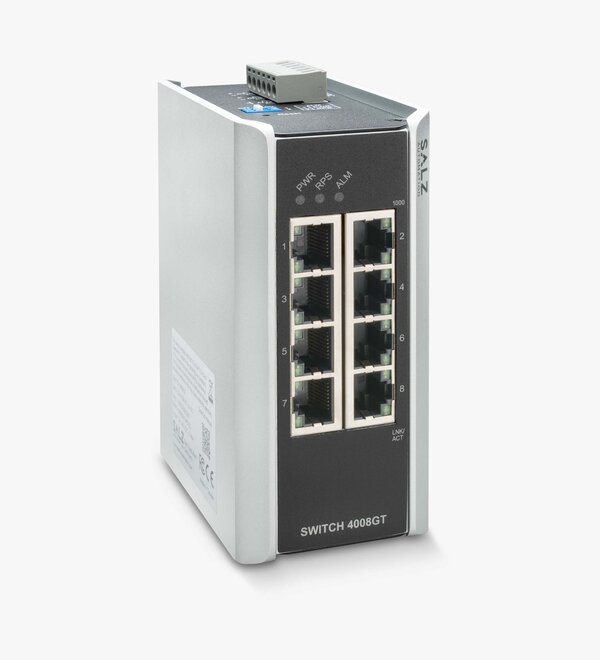

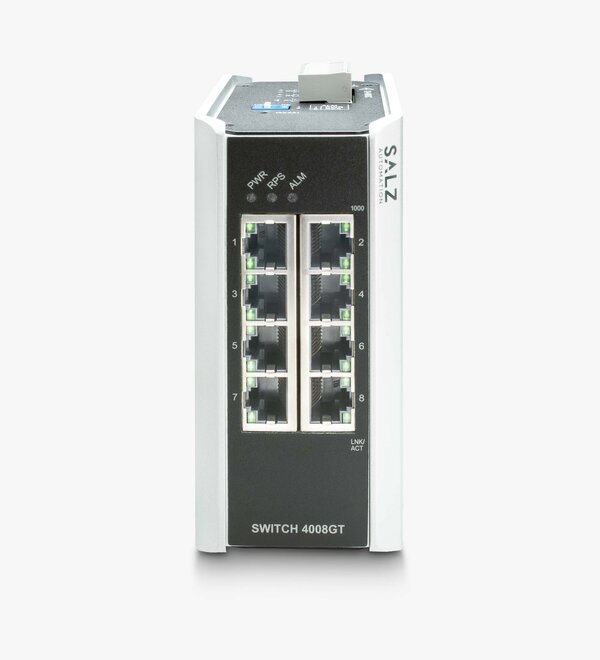

Lite-managed Industrial Switch 8 x 10/100/1000 RJ45

SWITCH 4008GT

8-port lite-managed industrial Gigabit Ethernet switch

Designed in Germany

Function

Lite-managed Industrial Switch 8 x 10/100/1000 RJ45, port prioritization, IGMP Snooping, flow control, storm control, VLAN support, port-based QoS, alarm out

Features

Green Ethernet Design
Optimal Bandwidth Utilization for Profinet
IGMP Snooping
Redundant Power Supply for Reliable Networks
Wide Temperature Range

HAVE A QUESTION?

Datasheet Download

SKU/Order No.: SA-4008-GT-01-00

Additional Information

The 8-port lite-managed industrial Gigabit Ethernet switch by SALZ Automation is specifically designed to expand highly reliable Ethernet connectivity to factory floors and outdoor environments with extreme temperatures and climatic conditions.The SWITCH 4008GT Switch’s rugged case and hardened components withstand high degree of vibration, shock and wide operating temperatures from -40℃ to 75℃. Equipped with eight 10/100/1000Base-T ports, SWITCH 4008GT is a scalable, cost-effective and future-proof industrial Lite-managed switch. It’s ideal for applications which demands high bandwidth convergence. It is designed with jumbo-frame (packet size more than 10K bytes) for increased efficiency and performance. SWITCH 4008GT takes advantage of intelligent connection technology to support Auto negotiation, thereby eliminating the hassle of manually configuring or monitoring settings. This ensures plug-n-play operability. Besides that, switch also includes built-in features to deliver a rock solid, adjustable network to down port networks, and also ensure impressive uptime even in the most challenging network conditions. The switch is equipd with IGMP Snooping. The Switch can passively snoop on IGMP packets transferred between IP multicast routers/switches and IP multicast hosts to learn the IP multicast group membership. All lite-managed switches are equipped with SALZ Automation’s management platform consisted by a Wizard, a Topology Map and a Dashboard. The Wizard is a set-up assistant that guides the user step by step through the initial management. The Topology Map displays the network infrastructure and highlights link status, and the Dashboard offers key performance and traffic-related information. OT and IT users can manage and monitor the Ethernet switches, real-time traffic and link information.

IEEE Standards

Interface

Switch Features

Input Data

Output Data

Mechanical Data

Ambient Condition

Dimensions

Standards and Regulations

Commercial Data

IEEE Standards back to top

IEEE 802.3	10Base-T
IEEE 802.3U	100Base-TX
IEEE 802.3AB	1000Base-T
IEEE 802.3	Nway Auto-negotiation
IEEE 802.3X	Flow Control
IEEE 802.1AB	LLDP
IEEE 802.3AZ	Energy Efficient Ethernet (EEE)
IEEE 802.1D	STP
IEEE 802.1w	RSTP
IEEE 802.1P	Class of Service
IEEE 802.1Q	VLAN Tagging
IEEE 802.1x	Port Authentication
IEEE 802.1AD	QinQ

Interface back to top

Ports (RJ45)	8 x 10/100/1000Base-T
DIP Switch	Primary, Redundant Power and Drop Alarm Setting
LED Panel	PWR, RPS, ALM, 1000, LNK/ACT

Switch Features back to top

Jumbo Frame Size	10 k
MAC Table size	8 k
L2 Forwarding Rate	11.9 Mpps
Throughput	14,880 pps to 10 Mbps ports; 148,800 pps to 100 Mbps ports; 1,488,000 pps to 1000 Mbps ports
Switch Fabric	16 Gbps
Management Functionality	CLI, Telnet, SSH, HTTP, HTTPs, SNMP v1/v2c, SNMP v3, SNMP Trap, Management VLAN (MVLAN), Firmware upgradable, Configuration Backup/Restore, Syslog, SNTP, LLDP, DHCP Client, Port Mirroring Server (service) control, Port Utilization, Alarm Information, ModbusTCP, Power Down trap Topology Map, Dashboard, Installation Wizard Port Configuration (enable/disable,speed/duplex), ONVIF, Port Statistic, System reboot from remote side using User Account with authority
Reliability	STP/RSTP, ERPS v1/v2, Code redundancy
VLAN	IEEE 802.1Q VLAN, Port-based VLAN (Port Isolation)
Traffic Control	802.1P QoS, Flow Control, Traffic Monitor for abnormal Traffic Detection, Storm Control, Port Isolation, Loop Detection, Storm alarm threshold per port
Security	ACL (Access Control List), Port Security with MAC limit, Port-based IEEE 802.1X, BPDU Guard and BPDU Filter, ROOT Guard, Trusted Managed Host

Input Data back to top

Input Voltage Range DC	24 ... 48 V (Primary & Redundant)
Input Current (typ.)	0.35 A (24 V)
Power Consumption (max.)	10 W

Output Data back to top

Contact Rating DC (resistive load)

Alarm relay; 24 V, 1 A

Mechanical Data back to top

Housing	Metal
Mounting DIN Rail according EN 60715	TH35
Weight (typ.)	840 g

Ambient Condition back to top

Ambient Temperature (operating)	-40 °C ... 75 °C (UL: -40 °C ... 70 °C)
Ambient Temperature (storage/transport)	-40 °C ... 85 °C
Operating Humidity (non-condensing)	5 ... 95 % RH
Storage Humidity (non-condensing)	5 ... 95 % RH

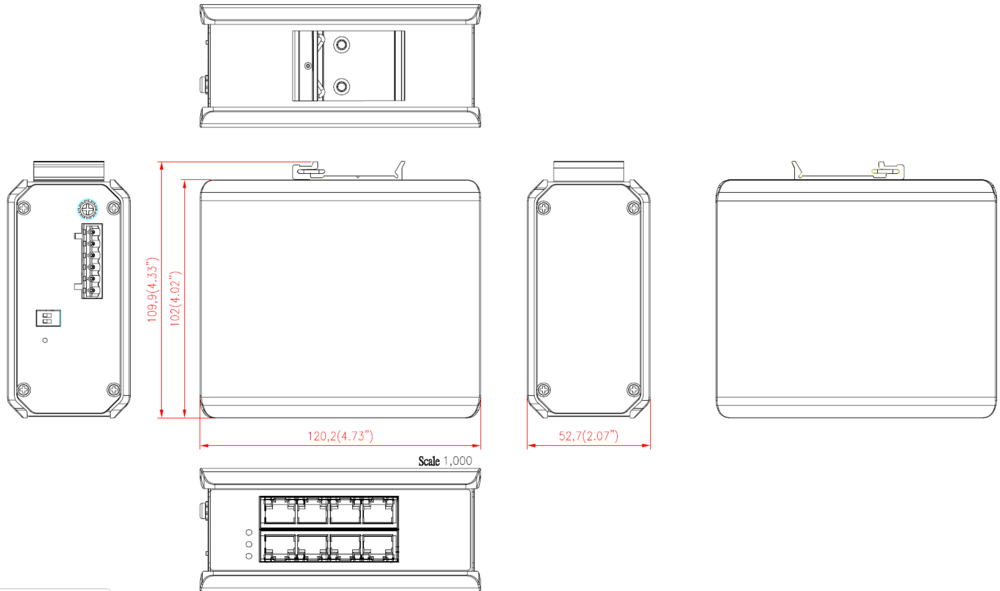

Dimensions back to top

Width (mm)	52.7 mm
Depth (mm)	109.9 mm
Height (mm)	120.2 mm

Standards and Regulations back to top

Electromagnetic Interference (EMI)	FCC Part 15 Subpart B class A; EN 55011 class A; EN 55032 class A; EN 61000-6-4
Environmental Management Systems (EMS)	EN 55024, EN 61000-6-2, EN 61000-4-2 (ESD), EN 61000-4-3 (RS), EN 61000-4-4 (Burst), EN 61000-4-5 (Surge), EN 61000-4-6 (CS), EN 61000-4-8 (PFMF)
Shock Test	IEC 60068-2-27
Free-fall Test	IEC 60068-2-32
Vibration	IEC 60068-2-6
Safety Standard	UL61010
RoHs	Yes

Commercial Data back to top

Customs Tariff Number

85176200

8 x Gbit RJ45 Ports

8 x 10/100/1000 BASE-T RJ45 Ports

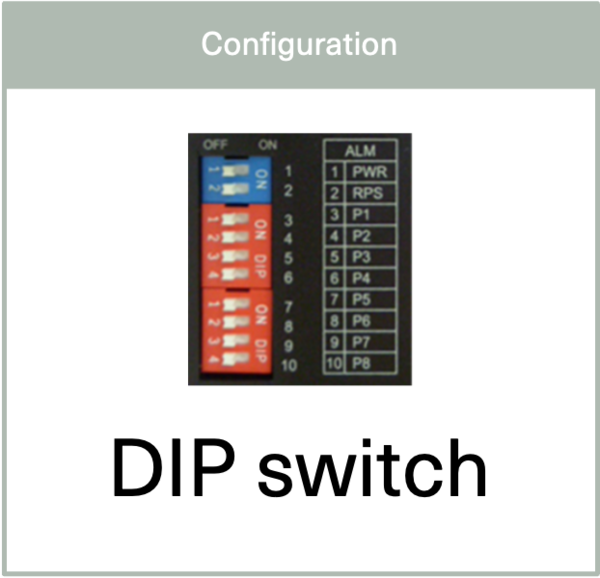

DIP Switch for Easy Configuration

DIP switch for switching the external alarm or redundant power supply on and off, without software.

Green Ethernet Design

IEEE802.3az Energy Efficient Ethernet (EEE) compliant Green Ethernet technology. This eco-friendly design allows the switch to automatically adjust power consumption and conserve energy during the periods of low data activity.

Industrial Grade EMI/EMS

The Switch need to be robust enough to handle harsh field site conditions, which can include high-voltage transients, severe shock and vibration, and extremely high temperatures.

IP30 Metal Housing Protection

Rugged IP30 grade aluminum housing to withstand highest vibration, heavy shocks, humidity and extreme temperatures.

Easy Installation “plug-n-play”

Featuring Auto-MDI/MDIX and Auto-negotiation on all ports, the Switch automatically detects and configures the best mode of operation over a link. This eliminates the need of user setup or configuration procedure and simplifies installation.

Optimal Bandwidth Utilization for Profinet

The switch recognizes frames for Profinet and ensures prioritized forwarding with least delay possible. Thereby, the switch enhances bandwidth utilization to ensure the data gets delivered efficiently to mission-critical applications, even during burst of high traffic.

IGMP Snooping

IGMP snooping is for multicast traffic. The Switch can passively snoop on IGMP packets transferred between IP multicast routers/switches and IP multicast hosts to learn the IP multicast group membership.

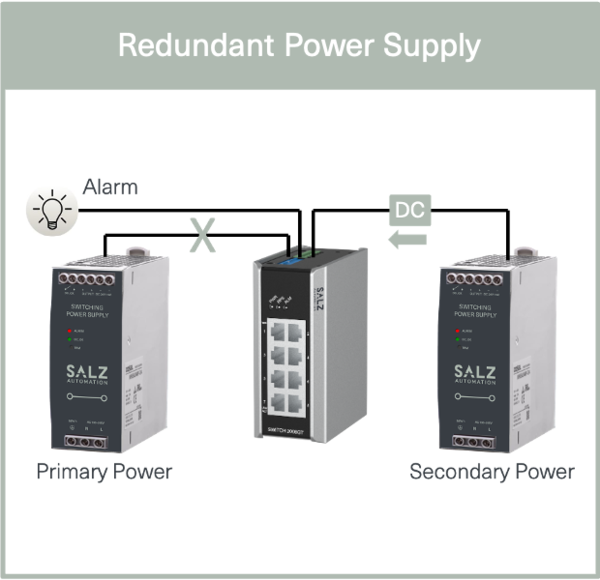

Redundant Power Supply for Reliable Networks

If the primary power supply fails, the switch is immediately supplied with a second, redundant power supply, ensuring the continuous operation of network services for critical applications in industrial environments.
