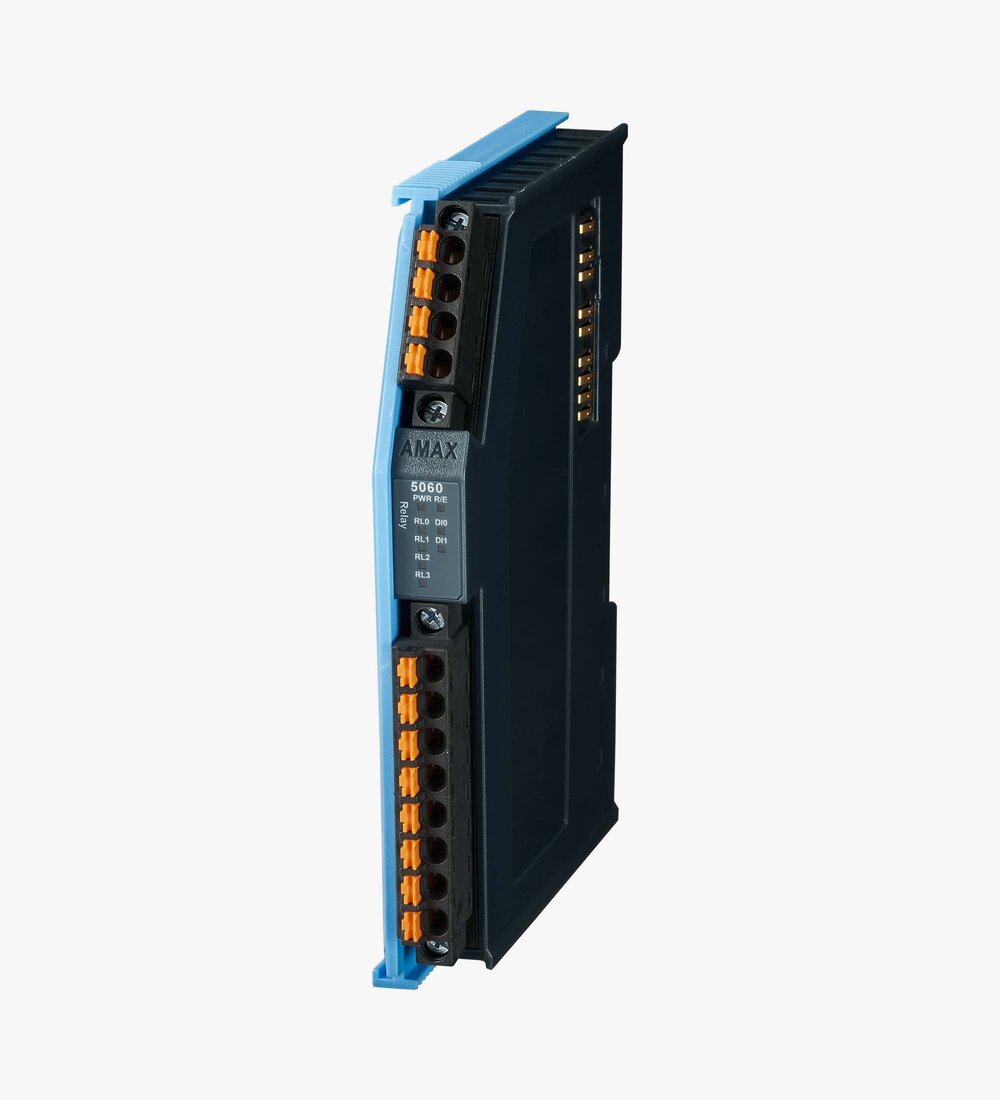

4-Channel Relay Output (with 2-channel DI) Slice IO Module

IP20 IO AMAX DOR4-DI2

4-Channel Relay Output (with 2-channel DI) Slice IO Module, 250VAC, 30VDC, 5A

Function

4 channel relay output, 2 channel digital input, 100Mbps EtherCAT, Removable push-in terminals, 250VAC, 30VDC, 5A

HAVE A QUESTION?

SKU/Order No.: SA-AMAX-5060-A

CE Declaration Mark

Additional Information

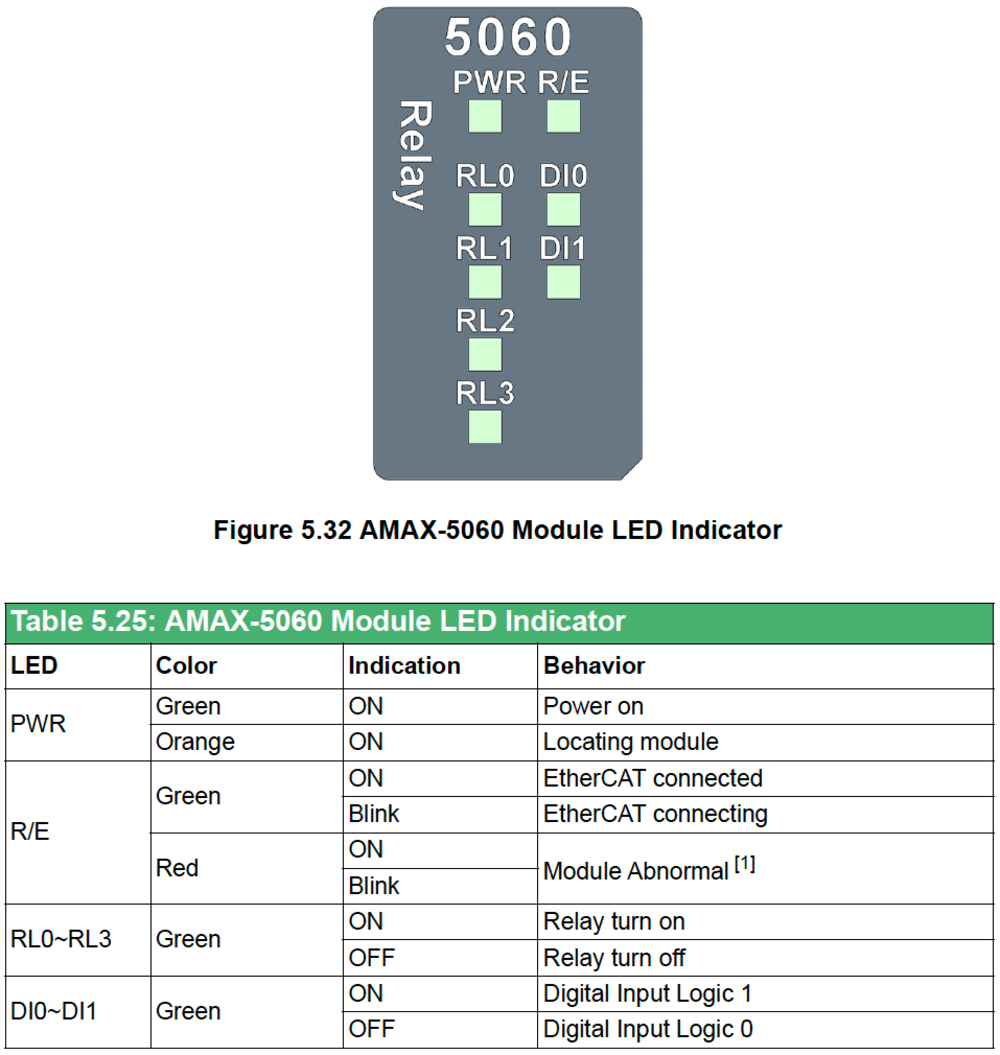

The AMAX-5060 features 4 relay outputs and 2 digital input channels. The digital input channels show LED to indicate digital status. The module provides 2,000 VDC optical isolation between channels. If any high voltage or current damage the channels, the whole system (other modules, and control unit) won't be affected because it is already isolated.
